1. Product Description
The Liner Guys Radiant Crawl Space Vapor Barrier is a high-performance, multi-layered product
designed to encapsulate basements and crawl spaces, providing ultimate protection
against moisture, mold, mildew, allergens, and fungus. This foil-backed woven liner effectvely
prevents moisture migration from the soil and acts as a barrier against soil gases like radon
and methane. Its composition and thickness allow it to exceed relevant ASTM standards,
making it an optimal choice for various encapsulation projects. It can also be used for radiant
barrier applications by reversing the foil side inward.

2. Product Name
The Liner Guys Radiant Crawl Space Vapor Barrier

3. Manufacturer
The Liner Guys
contact@thelinerguys.com
www.thelinerguys.com
(305) 842-9079

4. Material Composition

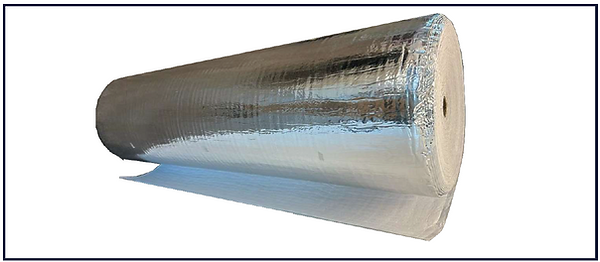

The Liner Guys Radiant Crawl Space Vapor Barrier is composed of a bright white cross-woven
polyethylene skin, laminated to a high-density flexible foam core, and metalized film (foil
backing). This triple-ply, extrusion coated, virgin polyethylene membrane is manufactured
using woven high-density fibers, yielding high strength-to-weight ratio, tensile strength, and
puncture resistance. The material is flame retardant.

​

5. Standard Thicknesses
100-mil (Nominal)
Custom thicknesses available upon request.
6. Standard Roll Sizes
4' x 125'
6' x 125'
Other sizes and custom requirements available upon consultation.

7. Standard Colors
White (face)/Metalized Silver (back)
Custom colors available and can be quoted per requirement.



8. Basic Use
This product is primarily recommended for crawl space vapor barrier insulation and basement
wall vapor barrier/waterproofing projects. It is designed to prevent moisture migration , guard
against mold, mildew, allergens, fungus, radon gas, methane gas, heat loss due to damp insula
tion, wood rot, and overall degradation of the crawl space. It can also be reversed for radiant
barrier applications.

9. Key Features
ASTM tested for additional moisture protection.
Conforms nicely to piers, columns, and transitions.
Metalized film creates a "zero-perm" barrier to moisture and gases.
Lightweight and easy to handle.
Inorganic and will not support mold growth.
Cushioned for comfort, benefiting installers, homeowners, and service technicians.
High strength-to-weight ratio, tensile strength, and puncture resistance.
Exceeds ASTM E1745 Class A, B, and C requirements.
Limited Lifetime Warranty.

​

10. Applicable Standards & Test Methods

(see table below)

​

11. Installation Instructions
Proper care should be taken when installing The Liner Guys Radiant Crawl Space Vapor Barrier,
as carelessness can damage even the most puncture-resistant vapor retarders. The liner will
help guard against possible punctures and tears present from rigorous construction traffic.
Placement:
*If a sump pump is present or to be installed, slightly slope the grade in the direction of the
sump pit to allow for proper drainage.
*Tamp or roll the subbase or granular base.

*Install the vapor barrier by means of appropriate sealing methods such as double-bond tape,
mechanical fasteners, termination bars, and/or high-grade construction adhesive to the upper
portion of the block/concrete wall.
*Leave at least a three-inch gap from the sill to the top of the vapor barrier for future termite
inspection.
*Seal the top edge with urethane caulk.
*Holes or openings through the vapor barrier should be effectively sealed with all-weather
vapor tape, vapor patch, and/or vapor mastic to maintain the integrity of the vapor barrier.
*Overlap joints a minimum of six inches. Seal overlap together with all-weather vapor tape.
*Avoid driving stakes through the vapor barrier. If this cannot be avoided, each individual hole
must be repaired.
These are very general installation instructions. Instructions on architectural or structural
drawings should be reviewed and followed. Detailed installation instructions can be obtained
from The Liner Guys website.

12. Warranty
Limited Lifetime Warranty. Warranty information can be obtained by contacting the manufacturer.

13. Certifications & Compliance
This product is compliant with the following ASTM standards: ASTM E1745 , ASTM E154 ,
ASTM D1709 , ASTM D5602 , ASTM E96 , ASTM D882 , ASTM D751 , ASTM E1643 , ASTM
D6241 , and ASTM E84-21. It is also Odor-Free.

14. Environmental Considerations
The Liner Guys Radiant Crawl Space Vapor Barrier can aid in reducing soil gas and poisons,
such as methane and radon.

15. Maintenance
Requires no maintenance once installed.

​

16. Technical Services & Filing Systems
Technical information and detailed test results can be obtained by contacting the manufacturer.
Additional information can also be obtained from The Liner Guys website.

17. Disclaimer
To the best of our knowledge, the specification chart lists typical property values and are
intended as guides only, not as specification limits. The manufacturer makes no warran􀆟es as
to the fitness for a specific use or merchantability of products referred to, no guarantee of
satisfactory results from reliance upon contained information or recommendations and disclaims
all liability for resulting loss or damage.

​

​

​
