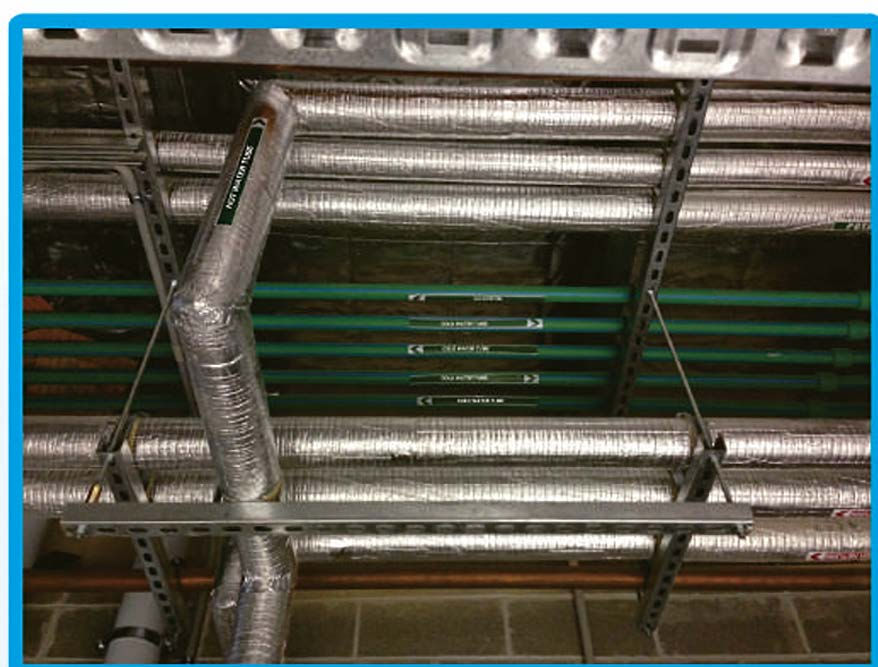

Optimize your HVAC and plumbing systems with The Liner Guys' Foam/Rubber Tube with Aluminum Foil Insulation. This versatile insulation solution combines a flexible foam/rubber core with a reflective aluminum foil facing, providing excellent thermal insulation, condensation control, and noise reduction. Ideal for insulating pipes, ducts, and other cylindrical components.

Key Features:
Flexible and Conformable: Easily bends and conforms to pipes and ducts of various shapes and sizes.
Thermal Insulation: The foam/rubber core provides excellent thermal resistance, reducing heat loss or gain and improving energy efficiency.
Reflective Aluminum Facing: The aluminum foil reflects radiant heat, further enhancing thermal performance.
Condensation Control: The closed-cell structure of the foam/rubber prevents moisture penetration, reducing condensation and protecting against corrosion.
Noise Reduction: The foam/rubber core helps to absorb sound, minimizing noise transmission from pipes and ducts.
Easy Installation: The self-sealing design allows for quick and easy installation without the need for additional tapes or adhesives.
Durable: The resilient foam/rubber maintains its shape and performance over time.

Specifications:
Available in two grades: B1 and B2 (refer to the attached image for detailed specifications of each grade)
Surface Density: 40±5 kg/m³ (Grade B1), 30±5 kg/m³ (Grade B2)
Stretch Intensity: 212 kPa (Grade B1), 190 kPa (Grade B2)
Rupture Tensible Rate: 56% (Grade B1), 140% (Grade B2)
Right Angle Ripping Intensity: 0.6 N/mm (Grade B1), 0.772 N/mm (Grade B2)
Thermal Conductivity: 0.0326 W/m.K (Grade B1), 0.033 W/m.K (Grade B2)
Water Absorption Rate: 0.0019 g/cm³ (Grade B1), 0.002 g/cm³ (Grade B2)
Heated Size Changed Rate: No change at 80°C
Compression Intensity: 37 MPa (Grade B1), 34 MPa (Grade B2)
Fire Resistance: Hard Burning B1 (Grade B1), Hard Burning B2 (Grade B2)
Oxygen Exponent: 32.8% (Grade B1), 26.6% (Grade B2)
Smoking Density Grade: Pass
Temperature Range: -140°C

Key Benefits:
Improved Energy Efficiency: Reduces heat loss or gain in pipes and ducts, leading to energy savings.
Condensation Prevention: Protects against corrosion and moisture damage by reducing condensation.
Noise Reduction: Creates a quieter environment by minimizing noise transmission.
Easy Installation: The self-sealing design simplifies installation and saves time.
Versatile Applications: Suitable for a wide range of HVAC and plumbing applications.

Invest in The Liner Guys' Foam/Rubber Tube with Aluminum Foil Insulation for an effective and easy-to-install solution for insulating your pipes and ducts.
